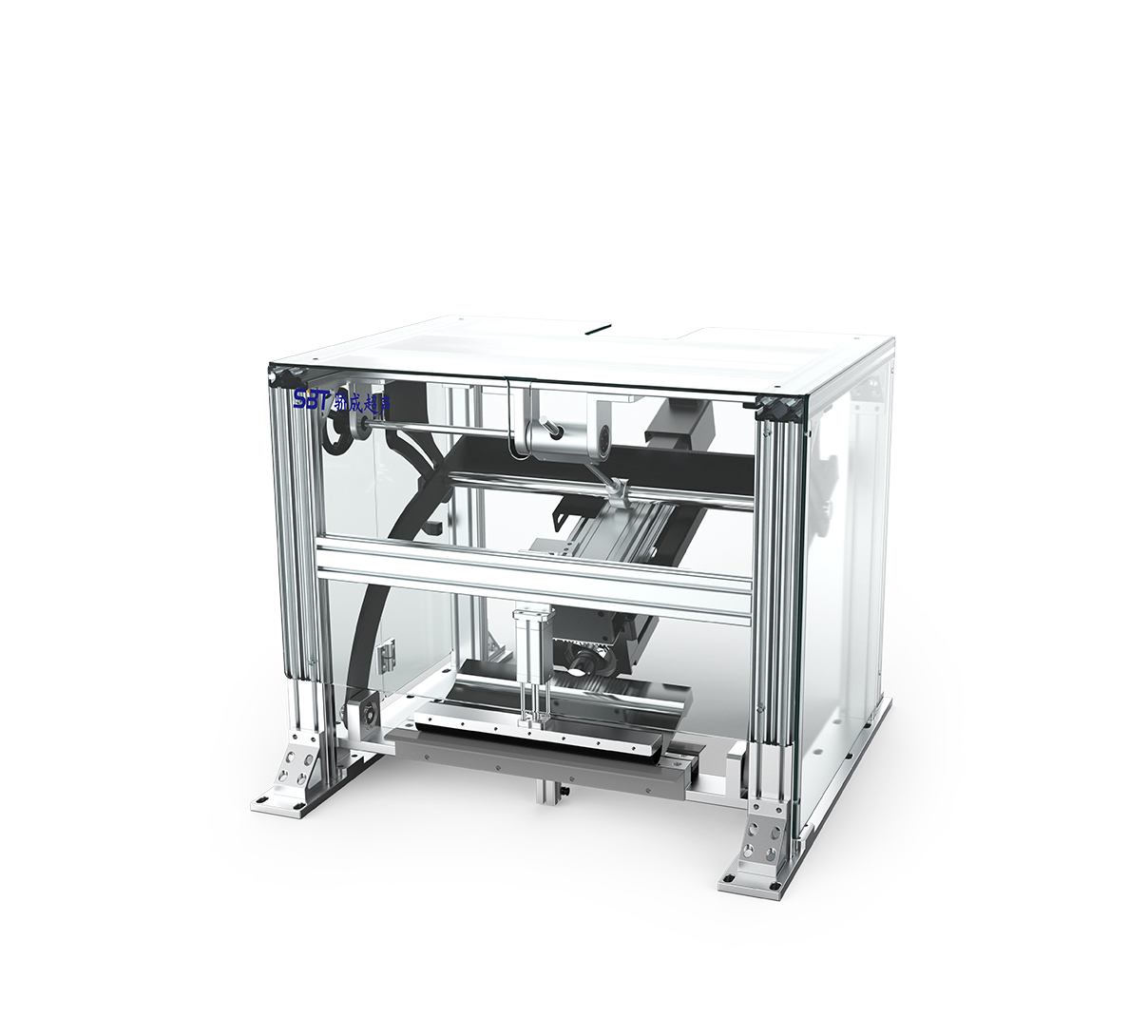

Ultrasonic Plunge Cutting System
Application
Tire tread rubber, sidewall rubber, bead filler, shoulder rubber.
Features
The cutter angle can be easily adjusted to match the rubber tire's adhesion angle.
The cutting angle is parallel to the plane, with minimal perpendicular error.
The cutting speed is adjustable, and the operation is simple and convenient.
Technical Parameter
Frequency
20 kHz
Power
1200 W~4800 W
Maximum cutting width
580 m
Maximum cutting thickness
22 ㎜
Cutting angle range
18°~30°
